Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM

    Buy cheap Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM from wholesalers

    Buy cheap Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM from wholesalers
    • Buy cheap Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM from wholesalers
    • Buy cheap Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM from wholesalers
    • Buy cheap Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM from wholesalers
    • Buy cheap Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM from wholesalers

    Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM

    Ask Lasest Price
    Brand Name : Dechang
    Model Number : DC-0.7*2.3
    Certification : Rosh
    Price : Factory Price
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 500000pcs/month
    Delivery Time : 3~5 days after recived the deposit
    • Product Details
    • Company Profile

    Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM


    Product Name : Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM​


    Featrues:


    1. Used more than 77 countries worldwide. World’s most advanced creasing matrix made from plastic, pressboard and pink fiber and resin for various die cutting jobs.
    2. Accurate locator – ensures perfect registration
    3. Low profile chamfer – board flows freely over the matrix; board marking is reduced
    4. Finger lift adhesive tape – backing paper easily and quickly removed
    5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs
    6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule
    7. It is extremely durable and accurate and provides benefits in time and cost.

    Material characteristics :

    1. Plastic (PVC) –easy to extrude & chamfer, good durability, cannot delaminate

    2. Pressboard – expensive, easy to chamfer, stronger durability, can delaminate

    3. Pink fibre – very resistant and durable, easy to chamfer, expensive
    Method to choose creasing matrix size for cardboard paper. Size table ( subject to 23.8 mm die-cutting rules)
    For instance: the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5.
    Method to choose creasing matrix size for corrugated paper. Size table ( subject to 23.8 mm die-cutting rules)
    Remarks: the above blanks just for reference and the exact specification suitable for your job should be chosen according to your actual conditions and material thickness.
    Packaging: 70cm/pc,50pcs/box,10boxes/carton Carton size: 71 x 20 x 16cm(length x width x height)

    Shipping:

    (1) By Express :2~5working days (Including DHL,UPS,EMS,Fedex)
    (2) By Sea:21~45working days
    (3) By Air:3~7working days
    (4) By Truck:28-33working days
    Tips: We will send you a tracking number or BL documents after the goods was shipped

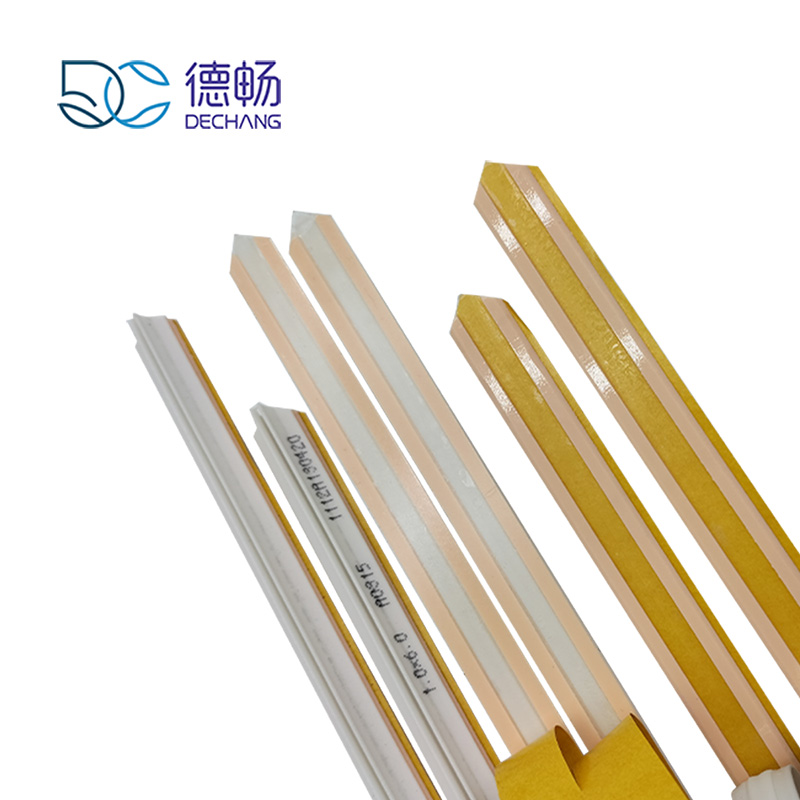

    Product Picture Show :






    Quality Durable Accurate Die Cutting Material Creasing Matrix PVC Fiber Base OEM ODM for sale
