    PVC Based Die Cutting Creasing Matrix Reverse Bend 2PT 1.5mm×1.9mm

    Ask Lasest Price
    Brand Name : Dechang
    Model Number : DC-2PT 1.5*1.9
    Certification : Rosh
    Price : Factory Price
    Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram
    Supply Ability : 500000pcs/month
    Delivery Time : 3~5 days after recived the deposit
    • Product Details
    • Company Profile

    PVC Based Die Cutting Creasing Matrix Reverse Bend 2PT 1.5mm×1.9mm

    Product Name : High Quality Plastic-based Reverse Bend Creasing Matrix 2PT 1.5*1.9


    Material characteristics


    1. Plastic (PVC) –easy to extrude & chamfer, good durability, cannot delaminate

    2. Pressboard – expensive, easy to chamfer, stronger durability, can delaminate

    3. Pink fibre – very resistant and durable, easy to chamfer, expensive

    4. Pertinax – the most durable product available but only available in smaller thicknesses and not all sizes. Impossible to chamfer, can use sand paper to chamfer.

    Features Of Dechang PVC Reverse Creasing Matrix


    1. Dechang is our brand and have competitive price with high quality.

    2. Accurate locator – ensures perfect registration
    3. Low profile chamfer – board flows freely over the matrix; board marking is reduced
    4. Finger lift adhesive tape – backing paper easily and quickly removed
    Notes: OEM and special sizes are available upon customer's demands.

    high quality PVC creasing matrix for offset printing machine


    Size Table

    0.3*0.80.4*1.00.5*1.00.6*1.00.7*2.10.8*2.51.0*3.0
    0.3*1.00.4*1.20.5*1.20.6*1.70.7*2.50.8*3.01.0*4.0
    0.3*1.20.4*1.30.5*1.30.6*2.30.7*3.00.8*3.51.0*5.0
    0.3*1.40.4*1.40.5*1.50.6*2.50.7*3.50.8*4.01.0*6.0
    how to choose size

    Method to choose creasing matrix size for cardboard paper.Size table(subjct to 23.8mm die-cutting rules).

    How to use Dechang Reverse Bend Creasing matrix size


    Use Method Of Creasing Matrix :


    1. Measure the length of the creasing rule.
    2. Mark the measurement and cut the matrix.
    3. Mount the cut piece onto the creasing rule with locator.
    4. Remove backing strip to revel adhesive membrane
    5. Lock into press&index machine to place matrix on machine to place matrix on opposing platen.
    6. Remove locator strip by pulling firmly upwards.
    7. Mitre to suitable angle.


    Packaging:


    70cm/pc,
    50pcs/box
    10boxes/carton
    Carton size: 71 x 20 x 16cm(length x width x height)


    Shipping:

    (1) By Express :2~5working days (Including DHL,UPS,EMS,Fedex)
    (2) By Sea:21~45working days
    (3) By Air:3~7working days
    (4) By Truck:28-33working days
    Tips: We will send you a tracking number or BL documents after the goods was shipped .

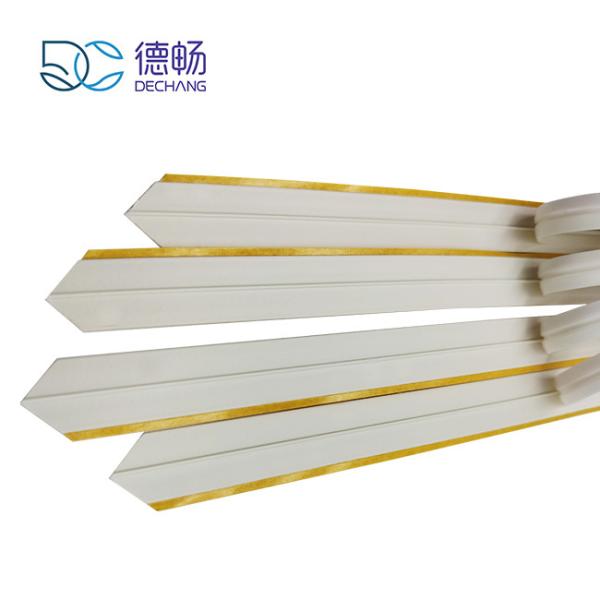

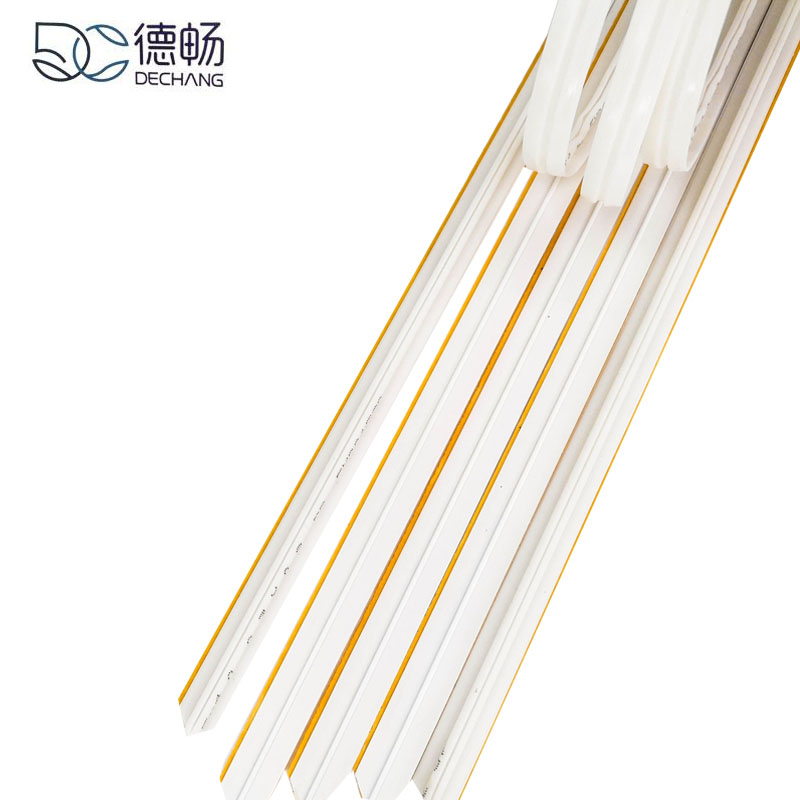

    Product Picture :
