Making Packaging Material Long Die Cutting Runs Plastic Creasing Matrix 0.3*1.4

Material characteristics :

Product Featrues:

1. Used more than 77 countries worldwide. World’s most advanced creasing matrix made from plastic, pressboard and pink fiber and resin for various die cutting jobs.

2. Accurate locator – ensures perfect registration

3. Low profile chamfer – board flows freely over the matrix; board marking is reduced
4. Finger lift adhesive tape – backing paper easily and quickly removed
5. New and strong adhesive removes cleanly from the plate after use, will not move about during die cutting jobs
6. Special sizes available to suit all board types, off-centers and multi-crease for close creasing rule
7. It is extremely durable and accurate and provides benefits in time and cost.

Plastic-based Size Table

H x W mm	H x W mm	H x W mm	H x W mm	H x W mm
DC 0.3×0.8 P	DC 0.5 x 1.2 P	DC 0.6 x 1.7 P	DC 1.0 x 3.0 P	DC 1.2 x 4.0 P
DC 0.3×1.0 P	DC 0.5 x 1.3 P	DC 0.6 x 1.9 P	DC 1.0 x 3.2 P	DC 1.2 x 4.5 P
DC 0.3×1.2 P	DC 0.5 x 1.4 P	DC 0.7 x 2.1 P	DC 1.0 x 3.5 P	DC 1.2 x 5.0 P
DC 0.4×1.0 P	DC 0.5 x 1.5 P	DC 0.7 x 2.3 P	DC 1.0 x 4.0 P	DC 1.2 x 6.0 P
DC 0.4×1.2 P	DC 0.5 x 1.6 P	DC 0.7 x 2.5 P	DC 1.0 x 4.5 P	DC 1.4 x 6.0 P
DC 0.4×1.3 P	DC 0.6 x 1.6 P	DC 0.8 x 2.7 P	DC 1.0 x 5.0 P	DC 1.4 x 7.0 P

Method to choose creasing matrix size for cardboard paper. Size table ( subject to 23.8 mm die-cutting rules)

For instance: the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5.

Finished Box after Die Cutting

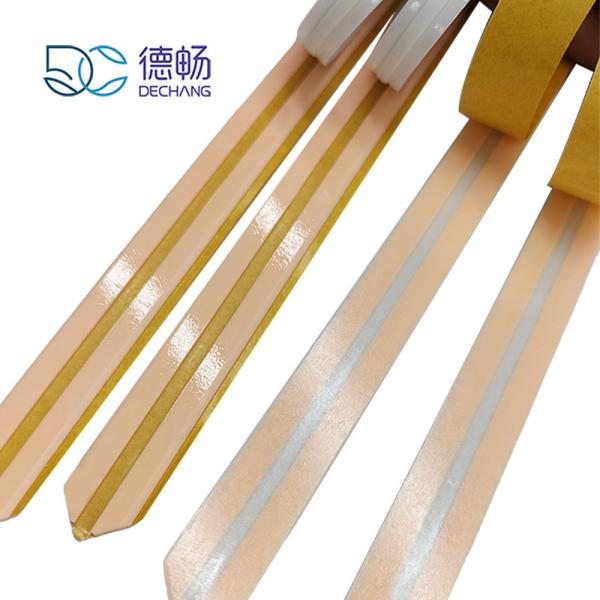

Product Picture :

Foshan Dechang Technology Co.,Ltd is a Professional Manufacturer Specialized in the Research , production and Sale of Creasing Matrix For Die Cutting Machine  in China . After Serveral Years effort , Our Company Product sales ratio keep rising and have achieved good reputation from our domestic and abroad customers with our reliable quality products , good Service , Professional technical team .

 Our company strives to make constant innovation and provide high -quality productts for our customers , now our product have die cutting consumables , like all sizes of the plastic -based creasing matrix . fiber-based creasing matrix and professboard creasing matrix with more die cutting cycles and higher durability . Dechang brand Arched Rubber Strip . Die Ejection Rubber , Die-Cutting tool Products Like Cutting Rules /Creasing Rules , Creasing Matrix Cutting Machine . Pneumatic Connection Tap Machine , Stripping Machine Standard Ceramic Scraper Etc .

The Company 'S Vision is To Become a major Supplier of Printing Materials integration in China . We will Provide high-Quality Products , With a Full Range Products  , Professional Technical Team and Perfect Service to the Printing And Packaging Manufacturers Customer Satisfaction and trust Support . Will Always be Our Confidence and Constantly Move Forward Power , Thank You to Every Customer !
