    Reverse Bend Die Cutting Creasing Matrix For E Flute Corrugated Carton

    Ask Lasest Price
    Brand Name : Dechang
    Model Number : DC-0.5*1.3mm
    Certification : Rosh
    Price : Order Price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500000pcs/month
    Delivery Time : 2~7 days after received the deposit
    • Product Details
    • Company Profile

    Reverse Bend Die Cutting Creasing Matrix For E Flute Corrugated Carton


    Fibre Pressboard Reverse Bend Creasing Matrix for E-Flute Corrugated Carton


    Product Feautre :


    1. Dechang is our brand and have competitive price with high quality.


    2. Accurate locator – ensures perfect registration.


    3. Hardening by special treatment accords with the static electricity on the surface of the film.


    4. To prevent bad static electricity in die cutting process, the quantity of indentation strip cutting is greatly improved, and the quality of indentation molding is consistent.


    5. It is especially suitable for solving the problem of grab holes in corrugated paper.


    When cutting cardboard model of the selection method of indentation


    Specification:


    BrandDechang
    Item TypePVC Reverse Bend Creasing Matrix For E-Flute Corrugated Carton
    MaterialPlastic
    Length70cm
    Size2PT
    MOQ20Boxes/50PCS/Box
    FeatureFast and exact matrix
    FunctionAuto-die-cutting machine
    Service Life50,000~80,000 times
    OEM/ODMOEM
    Delivery TimeAbout 3-7 Working Days After Payment
    SampleFree Sample
    PaymentVISA,T/T,Weston Union and etc.
    Shipping MethodBy Sea,DHL,Fedex,TNT and etc.

    Specification Selection :
    For instance:the thickness of the cardboard:0.52mm;the thickness of creasing rules:0.71mm,according to calculation formula:A=0.52≈0.5(mm);B=0.52*1.5+0.71=1.49≈1.5(mm),so we should choose the size of 0.5*1.5 Method to choose creasing matrix size for corrugated paper.Size table(subjct to 23.8mm die-cutting rules).

    When cutting cardboard model of the selection method of indentation :

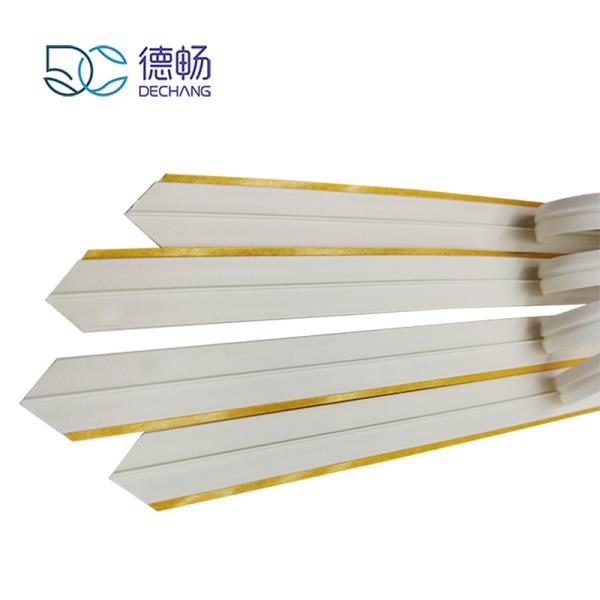

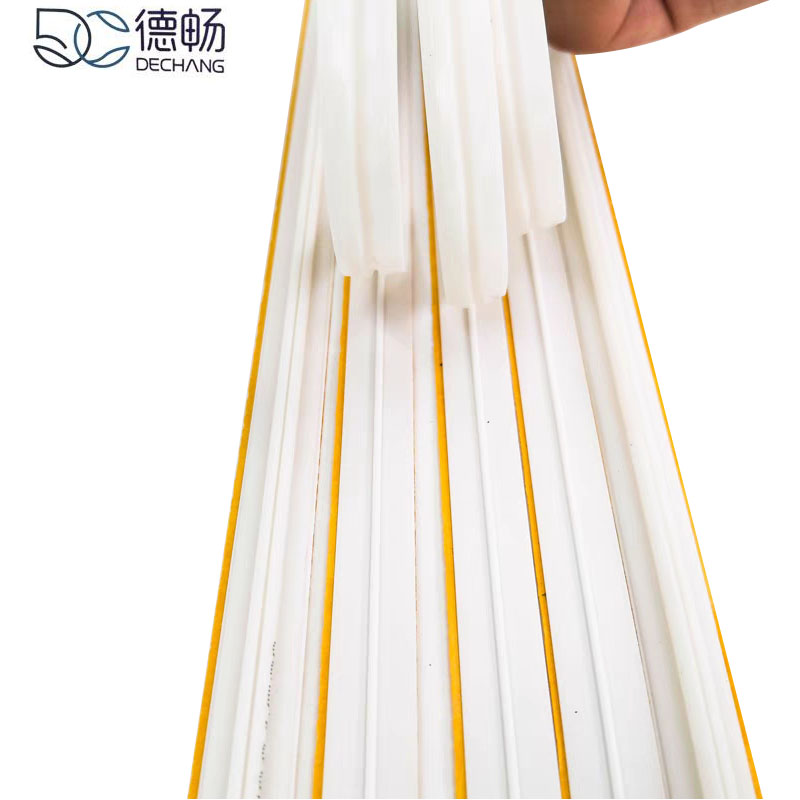

    Product Picture Show :




    Quality Reverse Bend Die Cutting Creasing Matrix For E Flute Corrugated Carton for sale
