    Steel Hollow Paper Hole Punch Drill Bit For Sharpening Machine

    Ask Lasest Price
    Brand Name : Dechang
    Model Number : DC-9mm
    Price : Factory Price
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/P
    Supply Ability : 500000pcs/month
    Delivery Time : 3~7 days after recived the deposit
    • Product Details
    • Company Profile

    Steel Hollow Paper Hole Punch Drill Bit For Sharpening Machine

    Hollow Paper Drill Bit Sharpening Machine Of Sharpener For Paper Drill Machine


    Product Features :


    Available in 2 kind styles to suit most popular drilling machines,straight and hollow shank.
    ● Dimensions from 2.0 mm to 10 mm.
    ● Standard HSS steel for paper, board or laminate applications
    ● Drill bits manufactured from HSS steel
    ● Both outside and inside edges polished for smooth surface
    ● Sharp cutting edge wax coated until use
    ● Suit a large range paper drill bit machines
    ● Diameter of drill bit can be matched to required hole
    ● Suitable for use on manual, semi-automatic or automatic machines
    ● Single or multi-headed machines.

    Paper Drill Bit Specifications:
    Drill Diameter(mm)
    Bit Length (mm)
    Collar/Holder Diameter(mm)
    Collar/Holder Length(mm)
    Overall Length(mm)
    3.0
    30
    11
    28.5
    65
    3.5
    35
    11
    28.5
    70
    4.0
    40
    11
    28.5
    75
    4.5
    40
    11
    28.5
    75
    5.0
    50
    11
    28.5
    85
    5.5
    50
    11
    28.5
    85
    6.0
    50
    11
    28.5
    85
    6.5
    50
    11
    28.5
    85
    7.0
    50
    11
    28.5
    85
    8.0
    50
    11
    28.5
    85
    9.0
    50
    11
    28.5
    85
    10.0
    50
    11
    28.5
    85
    Product Range:


    Paper Drill BitsStitching Head for Muller Martini
    ● Stitching Head Parts for Muller Martini
    ● Sittching Head for Osako
    ● Sttching Head parts for Osako
    ● Booksewing Parts:Muller Martini needle, Muller Martini hook needle, Organ needle, Aster Belt, Aster hook needle, Aster gripper, Aster snack book, Aster transfer wheel etc
    ● Saddle Stitching Parts: Transport flight, Black Finger,Screw, spring, endless belt, brush Gluebinding parts: Pusher etc
    ● Folding machine parts: Suction wheel, plastic ball, bearing, screw,plate clamp levers,tape roller,belt
    ● Kolbus Parts
    ● Milling Knife
    ● Cutting Stick
    ● Rubber Sucker


    We stock a range of standard paper drill bits for the popular paper drilling machines . please contact us for more information and prices. Drilling sticks / pads and drill sharpening kits also available.

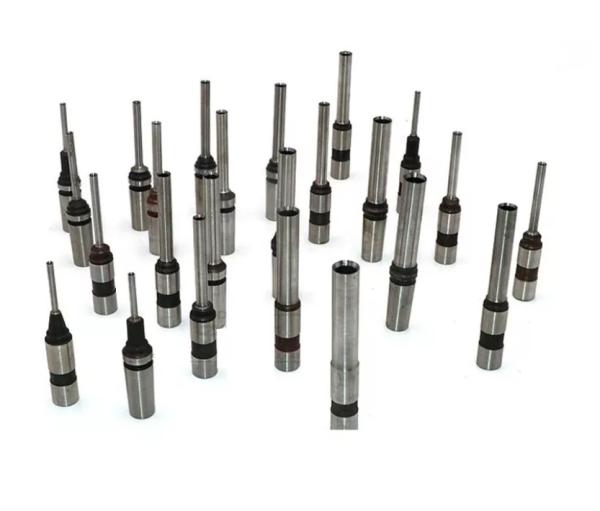

    Product Picture :
