    Pneumatic Angle Die Cutting Machine Nick Grinding Adjustable 220V

    Ask Lasest Price
    Brand Name : Dechang
    Model Number : DC-NG001
    Certification : CE
    Price : Factory Price
    Delivery Time : 3~5 days after recived the deposit
    • Product Details
    • Company Profile

    Pneumatic Angle Die Cutting Machine Nick Grinding Adjustable 220V


    Pneumatic angle nick grinder and Handheld Pneumatic nick grinder tools machine


    Product Feature :

    developed especially for grinding nicks in cutting dies. Pneumatic drive for high performance.
    The damaging of the rubber during grinding is prevented, performance of the diecutter is optimized.
    simplified positioning for setting the nicks
    Available grinding wheel size: 50x8mm or 50x10mm

    Grinding Wheel Thickness: 0.2mm,0.3mm,0.4mm,0.5mm,0.6mm,0.7mm,0.8mm,0.9mm,1.0mm,1.2mm,1.5mm,2.0mm,


    Product Parameter :
    Electricity voltage
    220V
    Maximum Torque
    Adjustable
    No-Load Speed
    0-24000RPM
    Color
    Yellow/Blue/Green
    Automatic Grade
    Semi-Automatic
    Packing
    1set/box
    Net Weight
    2.5kg
    Usage
    Die cutting Nick Grinding
    Dimension
    180*60*68mm
    Delivery tools
    4pcs
    Free grinding wheel per set
    10pcs
    Warranty service
    6 months

    Advantage:

    1. Versatile pneumatic powered nicking grinder produce clean, perpendicular nicks at consistent&adjustable depths.

    2. Operating with less noise and vibration

    3. Steady position of the devices on die-boards due to 4 removable pins below the base.

    4. Nicks width from 0.2mm to 2.0mm by using different grinding distance thickness.


    Manual Instructions

    1. Check the air source, air pressure stable or not
    2. Check the machine screws etc.
    3. Change the grinding wheel according to needs, adjust the depth valve(If not use high precision position, pls lock the depth valve to the rock bottom position, which will do the nick grinding jobs according to the pressure power)
    4. Wear gloves, protective glass, masks
    5. Connect to air source( suggest to hang up the air hose)
    6. Pls drop 3 drops pneumatic oil to the air inlet, plug in the air hose. Rotate to right to open the grinder. Then slowly idle for a few seconds, rotate to left to close
    7. Put the wooden die cutting board smoothly on the table(suggest not to use sponge rubber before nick grinding, as resistance increases)
    8. Rotate to right to open the grinder, increase the speed. Use thumb and first finger to hold the machine when the rotation speed gets stable. Then put the machine in the front side of the steel rules, move it to the grinding position(use wheels to adjust the position) and gently press the machine to start nicking. Move stably in turn. Pay attention that must gently press and handle
    9. After finish the nicking job, rotate to left to close. Unplug the air hose and use 3 drops pneumatic oil to the air inlet, then plug to the air hose and open the grinder to idling for a few seconds. After that close the air source, clean the machine body and keep in proper position

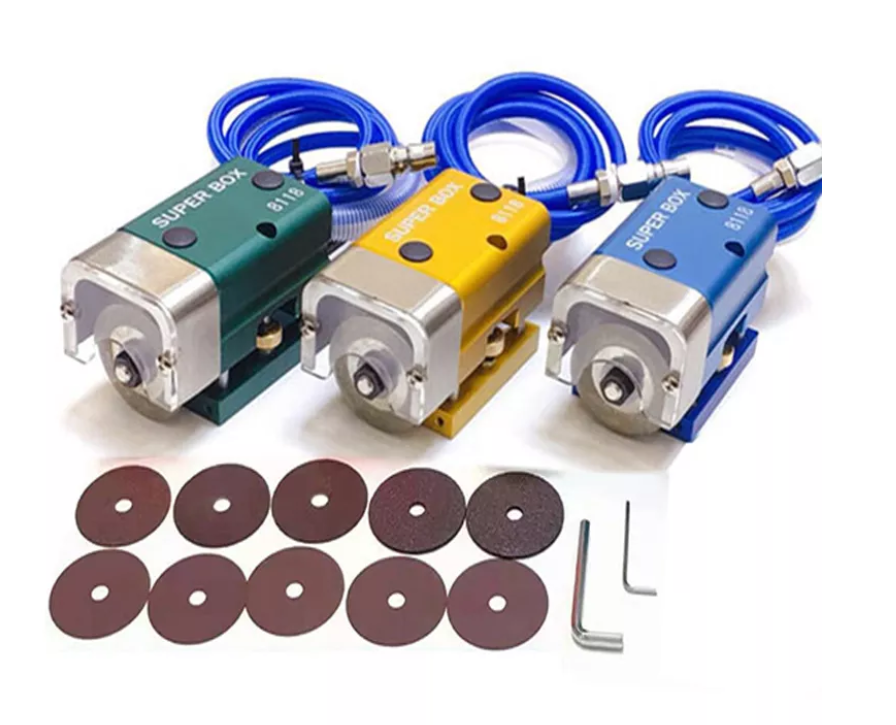

    Product Picture Show :




    Quality Pneumatic Angle Die Cutting Machine Nick Grinding Adjustable 220V for sale
